01 August 2025

MILWAUKEE® PROVIDES POWERFUL AND COMPACT DRILLING WITH NEW 16MM SDS-PLUS HAMMER

MILWAUKEE® delivers the brand new M18 FUEL™* High Performance 4-mode 16mm SDS-Plus Hammer. A completely versatile and compact design, with 4-mode operation- rotary hammer, hammer only, rotation only and variolock for maximum versatility and light material removal.

Drilling up to 58 holes ⌀10 x 50 mm on a M18™ HIGH OUTPUT™ 3.0 Ah battery per charge. The light and safe solution for end users in the later stages of construction and renovation. Never compromising on important ergonomics and performance.



THE POWERSTATE™ BRUSHLESS MOTOR DELIVERS 1.7 J OF IMPACT ENERGY, 1400 RPM, AND 5080 BPM, ENHANCING PORTABLE PRODUCTIVITY.

REDLINK PLUS™ Intelligence ensures maximum hammer performance and protects it from overload, overheating, and over-discharge. At only 263 mm long and 2.6 kg, this hammer has the power to complete the toughest concrete applications, for its size.

For enhanced safety, this hammer includes an AVS Anti-vibration system for maximum comfort and AUTOSTOP™ enhanced kickback control to reduce over-rotation. For maximum versatility, the LED lighting provides increased visibility, and the integrated hang hook for functional storage and convenience.

The dedicated dust extractor kit allows for maximum power and productivity. Designed to collet dust effectively with the HEPA filter that is widely regarded to as the ultimate filter trapping all sizes of particles with an efficiency rating of 99.75%.

MILWAUKEE® is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day's work on one battery system. The M18 FUEL™ high performance 4-mode16mm SDS-Plus hammer is fully compatible with the entire M18™ line, now offering more than 315 solutions.

MILWAUKEE® remains unwavering in their commitment to delivering disruptive innovation by working alongside trade professionals to identify challenges and provide solutions that are unparalleled in enhancing job site safety and productivity.



*M18 FUEL™ is engineered for the most demanding tradesmen in the world. Delivering unrivalled performance, all M18 FUEL™ products feature three MILWAUKEE®-exclusive innovations—The POWERSTATE™ Brushless Motor, REDLITHIUM™ Battery Pack and REDLINK PLUS™ Intelligence Hardware and Software—that deliver unmatched power, run time, and durability on the job site. Simply put, M18 FUEL™ tools are the most powerful 18V cordless tools in their class.



Specifications

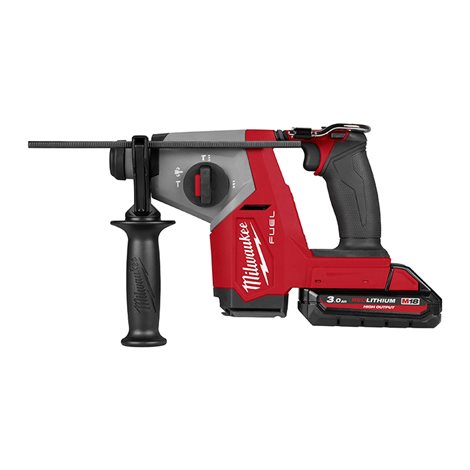

M18 FUEL™ High Performance 4-mode 16mm SDS-Plus Hammer

M18 FHAC16-302X

  • Battery Type: Lithium-ion
  • Battery System: M18 FUEL™
  • Blow Energy [EPTA]: 1.7 J
  • Max. Drilling Concrete: 16 mm
  • Max. Percussion Rate: 5080 bpm
  • No Load Speed: 0 -1400 rpm
  • Optimised Drilling Capacity in Concrete: 5 – 12 mm
  • Vibration Chiselling: 10.9 m/s²
  • Vibration Drilling into Concrete: 13.6 m/s²
  • Weight with Battery Pack (EPTA): 2.6 kg (M18 HB3)

Kit Includes: (1) M18 FUEL™ High Performance 4-mode 16mm SDS-Plus Hammer, (2) M18 HB3 Battery Packs, (1) M12-18 FC Charger, (1) HD Box

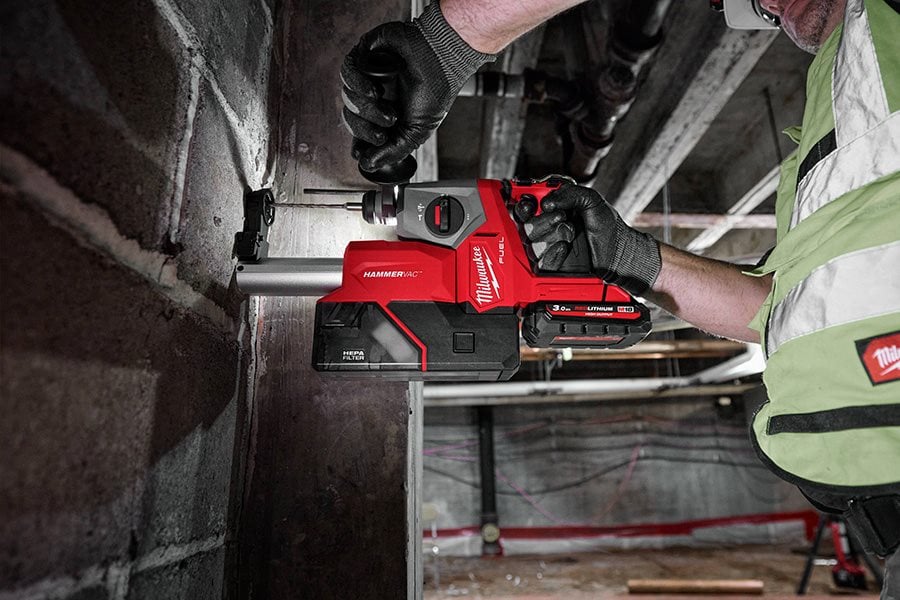

M18 FUEL™ High Performance 4-mode 16mm SDS-Plus Hammer with Dedicated Dust Extractor

M18 FHACDDE-0C

  • Battery Type: Lithium-ion
  • Battery System: M18 FUEL™
  • Blow Energy [EPTA]: 1.7 J
  • Collection Container Capacity: 0.31 L
  • Filter Type: HEPA 13
  • Max. Drilling Concrete: 16 mm
  • Max. Percussion Rate: 5080 bpm
  • No Load Speed: 0 -1400 rpm
  • Optimised Drilling Capacity in Concrete: 5.5 – 13 mm
  • Vibration Chiselling: 10.9 m/s²
  • Vibration Drilling into Concrete: 13.6 m/s²
  • Weight with Battery Pack (EPTA): 3.1 kg (M18 HB3)

Kit Includes: (1) M18 FUEL™ High Performance 4-mode 16mm SDS-Plus Hammer, (1) M18 FUEL™ Dedicated Dust Extractor for M18 FUEL™ High Performance 4-mode 16mm SDS-Plus Hammer (1) HD Box
